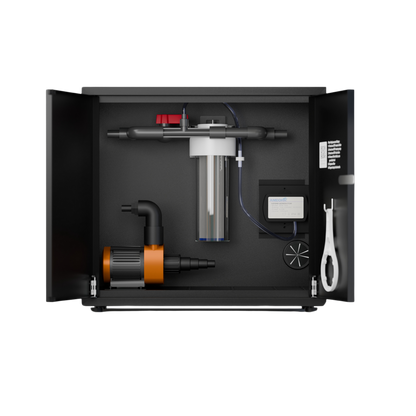

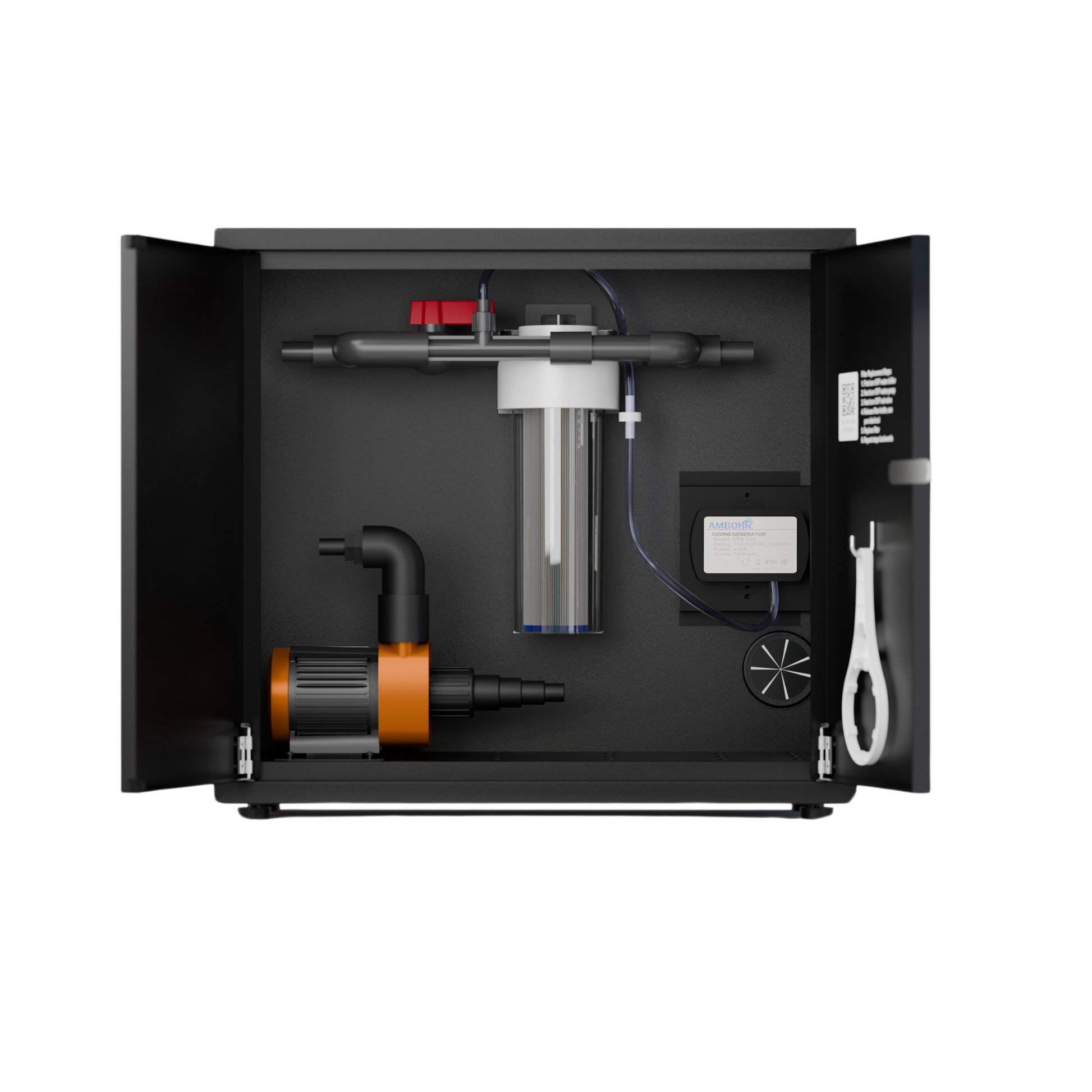

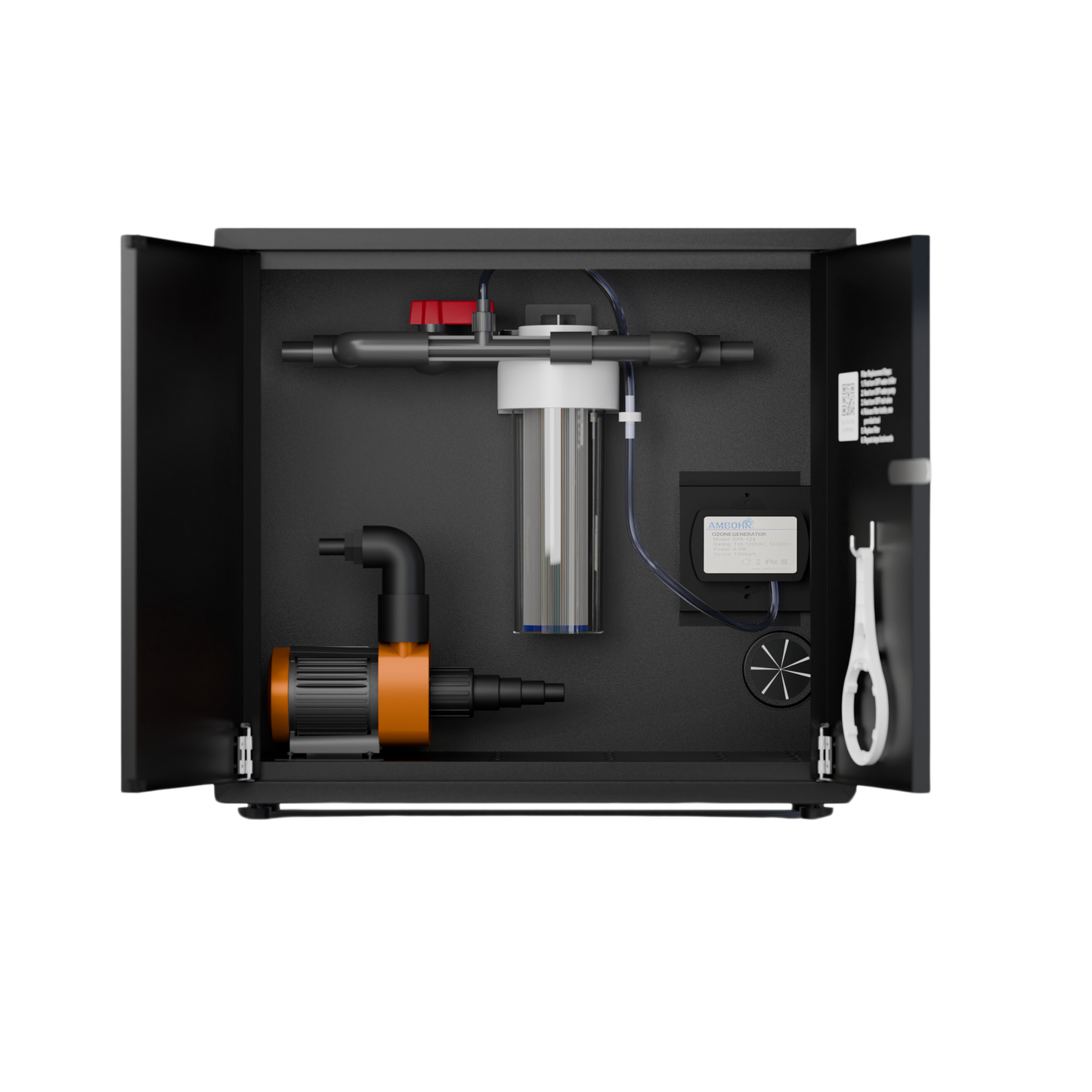

RevX Ozone Water Filtration System

Continuous Filtration. Ozone Sanitation. Professional Performance.

The RevX Ozone Water Filtration System is a complete water circulation, filtration, and sanitation solution designed specifically for cold plunges, ice baths, and recovery tubs. Engineered for continuous operation, this all-in-one system helps maintain clean, filtered water while reducing maintenance requirements.

Featuring a high-flow water pump, ozone sanitation technology, and 20-micron filtration, the RevX Ozone Water Filtration System is designed to deliver reliable performance for both residential and commercial cold plunge applications.

Features

High-Flow Water Circulation

Powered by a commercial-grade water pump rated at up to 1,700 gallons per hour (GPH), designed for continuous operation.

Ozone Sanitation System

Equipped with the trusted Ambohr SPA-124 ozone generator and venturi injector to support water sanitation and maintenance.

20-Micron Water Filtration

Includes a clear filter housing and replaceable filter cartridge designed to capture debris and sediment.

Durable Steel Cabinet

Housed within a rugged all-steel cabinet featuring a sleek black matte finish for durability and protection.

Plug-and-Play Design

Ships fully assembled with integrated plumbing components for convenient installation and operation.

Built-In Shut-Off Valve

Allows for easier maintenance and filter replacement.

Indoor and Outdoor Use

Designed for reliable year-round performance in both indoor and outdoor environments.

Specifications

Pump: Commercial-Grade Water Pump

Flow Rate: Up to 1,700 GPH

Ozone Generator: Ambohr SPA-124 with Venturi Injector

Power Requirements: 110V / 60Hz

Plumbing Components: 3/4-Inch PVC

Connections: Slip-On Barbed Hose Fittings

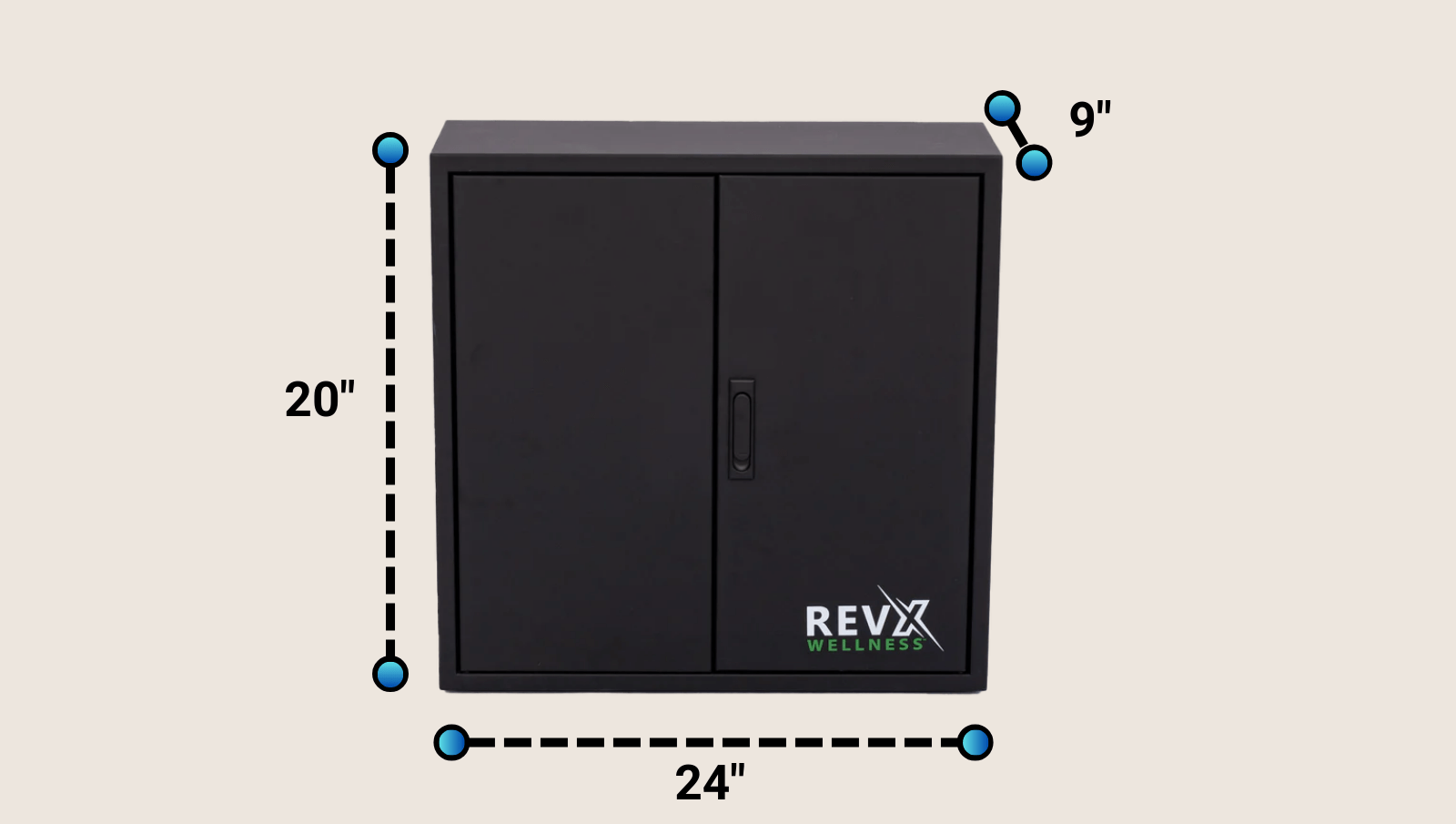

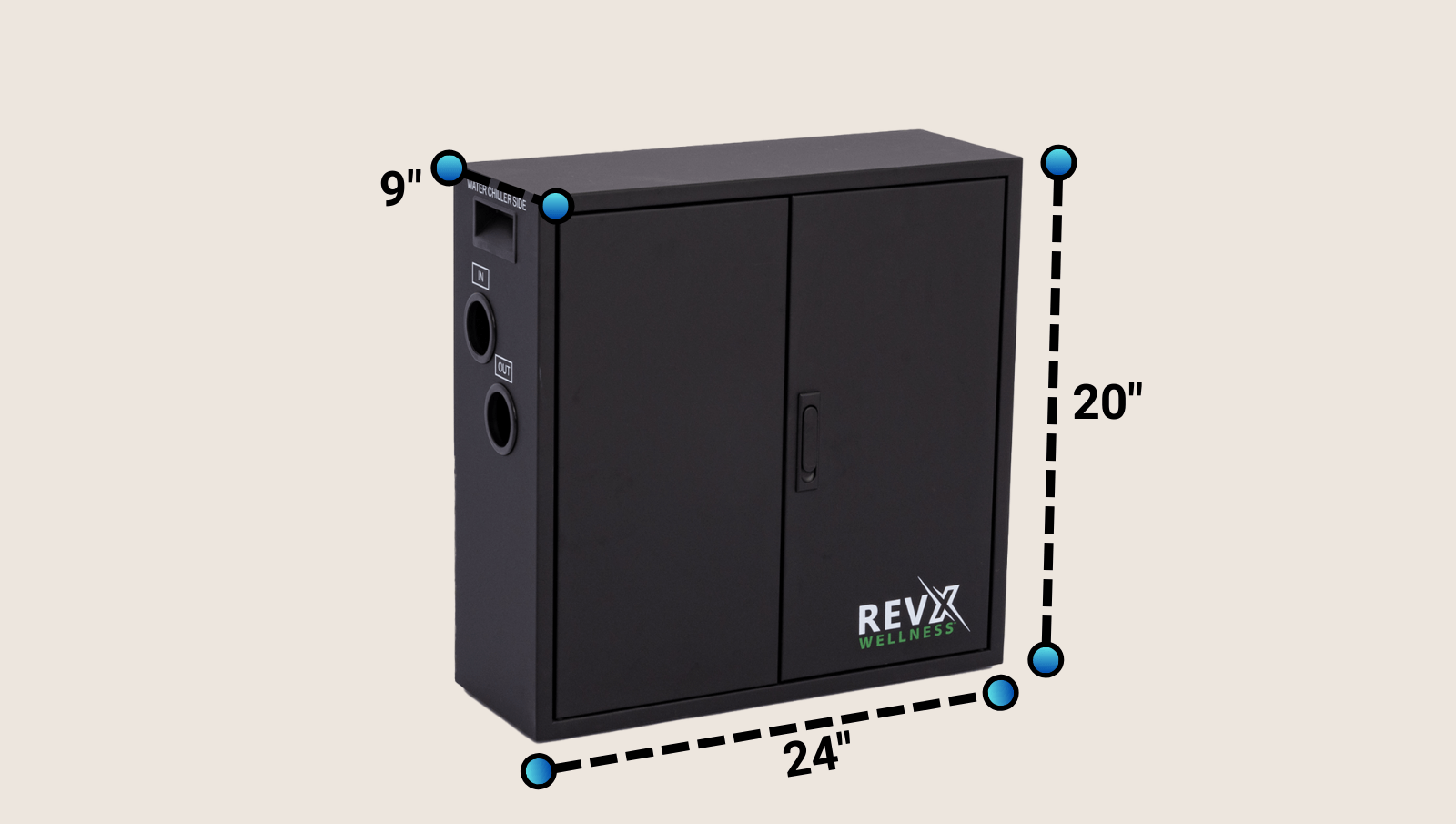

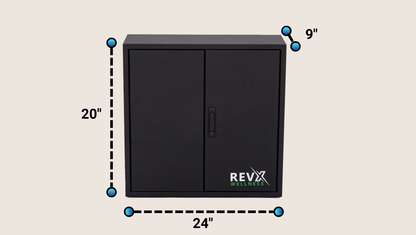

Cabinet Construction: All-Steel Cabinet with Black Matte Finish

Usage: Indoor and Outdoor

Recommended Operation

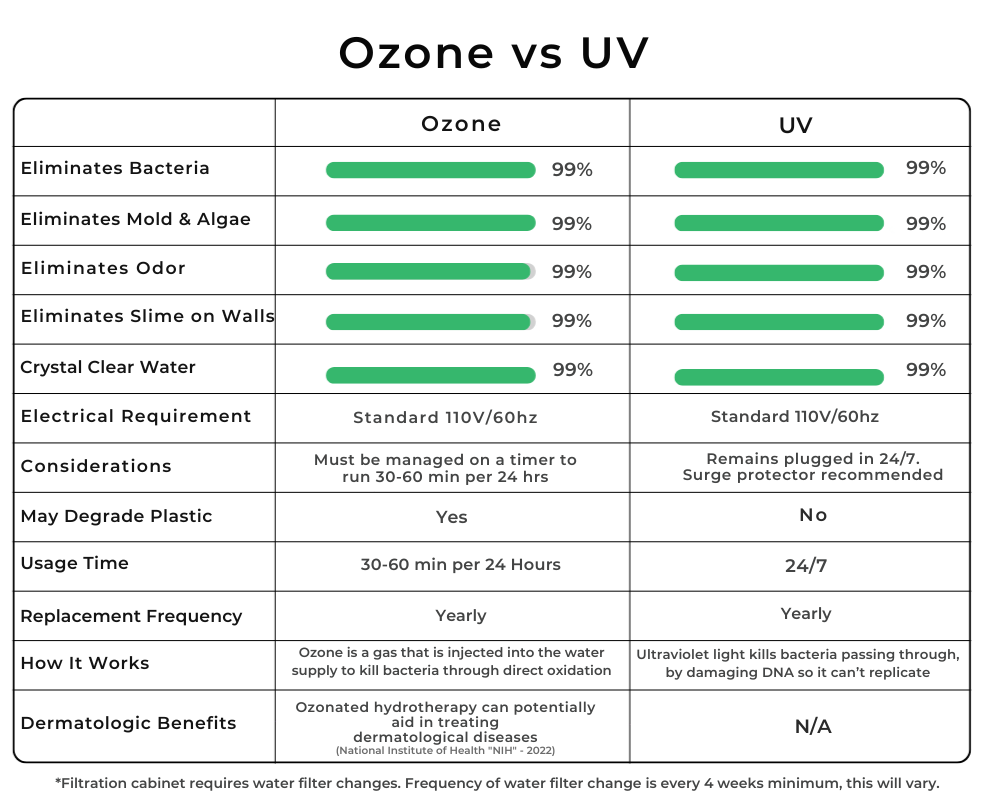

For optimal performance, RevX recommends operating the ozone generator for approximately one hour every 24 hours using a compatible timer.

What's Included

• Steel Equipment Cabinet

• Ambohr SPA-124 Ozone Generator with Venturi Injector

• Commercial-Grade Water Pump

• Clear Filter Housing

• 20-Micron Filter Cartridge

• Built-In Shut-Off Valve

• Pre-Assembled Plumbing Components

Shipping

• Ships within the United States only

Warranty

• One-Year Limited Manufacturer Warranty
